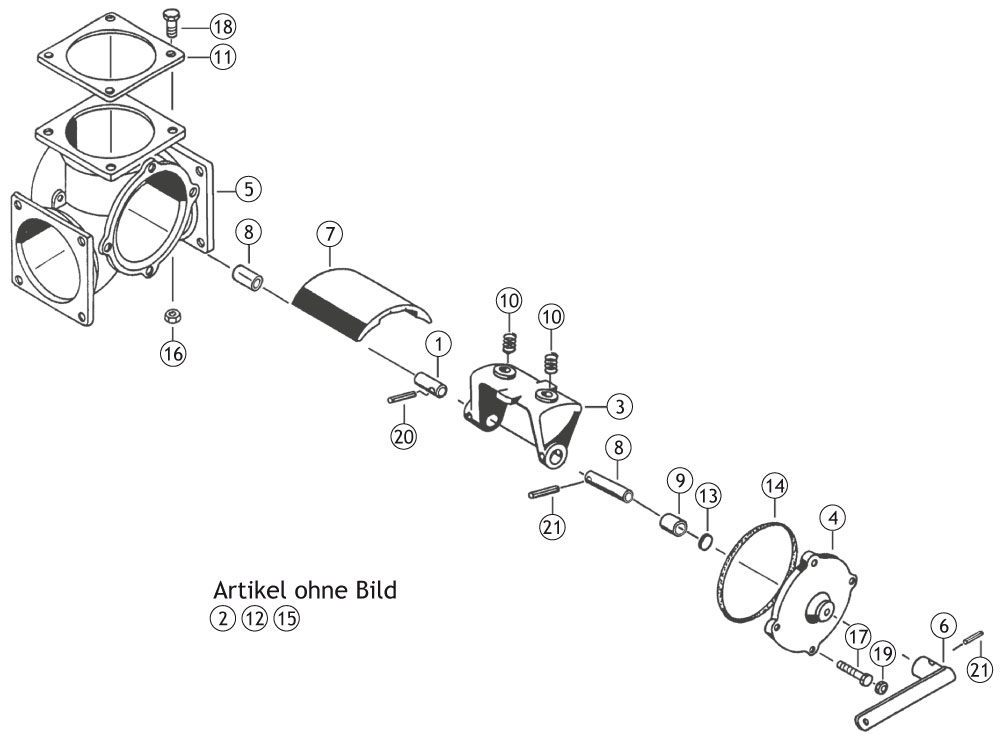

Explosionszeichnung
für Eisele Dreiwegehahn
Fehlende Ersatz- und Verschleißteile auf Anfrage.
| Position | Artikel | Stück | Bestell-Nr. | |
| 1 | Bolzen 20 x 36 mm | 1 | Z69530 | |
| 2 | Bügel komplett (Pos. 1 + 3 + 20) (ohne Abb.) | 1 | V70222 | Auf Anfrage |
| 3 | Bügel | 1 | V69649 | |
| 4 | Deckel | 1 | D74112 | |
| 5 | Gehäuse | 1 | D74110 | Auf Anfrage |
| 6 | Hebel | 1 | D74074 | |
| 7 | Schieber | 1 | D74111 | |
| 8 | Welle D20 x 95 mm | 1 | D74075 | |
| 9 | Buchse NBU 2026-20 | 2 | 31880 | |
| 10 | Druckfeder | 2 | 26359 | |
| 11 | Gummiflachdichtung für 4-Loch-Flansch | 1 | 30984 | |
| 12 | Handgriff (ohne Abb.) | 1 | 32584 | |
| 13 | Rundschnurring 20 x 4 mm | 1 | 29300 | |
| 14 | Rundschnurring 185 x 3 mm | 1 | 27296 | |
| 15 | Schmiernippel CM 6 (ohne Abb.) | 1 | 28681 | |
| 16 | Sechskantmutter M12 NIRO | 4 | 33605 | |
| 17 | Sechskantschraube M8 x 25 mm | 4 | 35519 | Auf Anfrage |
| 18 | Sechskantschraube M12 x 50 mm VA | 4 | 35618 | |
| 19 | Sechskantschutzkappe | 4 | 29074 | Auf Anfrage |
| 20 | Spannstift 6 x 40 mm | 1 | 30749 | |
| 21 | Spannstift 8 x 40 mm | 2 | 31437 |
