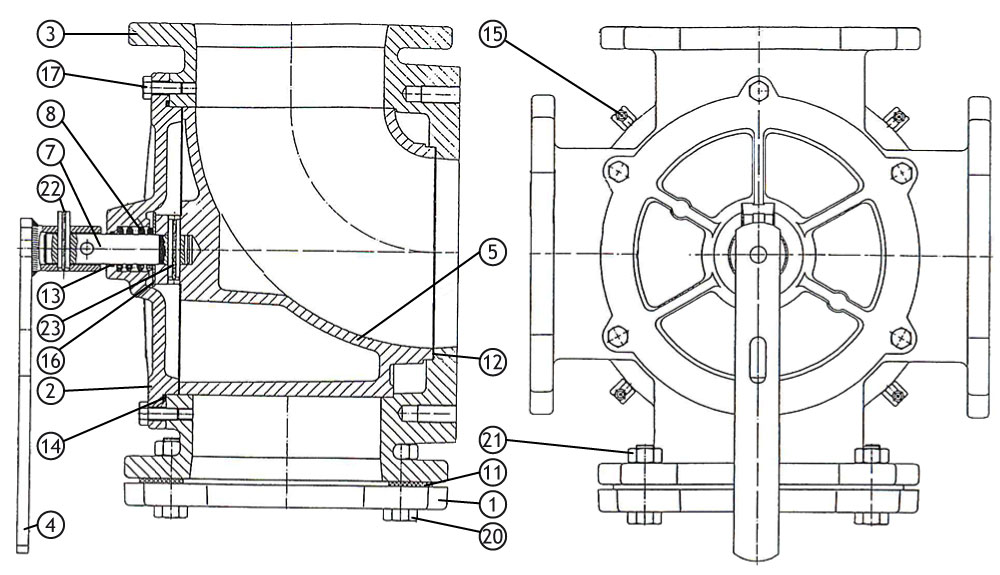

Explosionszeichnung
für Eisele Fünfwegehahn
Fehlende Ersatz- und Verschleißteile auf Anfrage.
| Position | Artikel | Stück | Bestell-Nr. | |
| 1 | Blindflansch | 1 | Z67973 | |
| 2 | Deckel oben | 1 | Z78157 | |
| 3 | Gehäuse | 1 | D70331 | Auf Anfrage |
| 4 | Hebel | 1 | D74074 | |
| 5 | Schieber komplett | 1 | Z78158 | |
| 7 | Welle D20 x 95 mm | 1 | Z78168 | |
| 8 | Druckfeder | 1 | 34633 | |
| 11 | Gummiflachdichtung für 4-Loch-Flansch | 2 | 30984 | |
| 12 | Ring D125 x D140 x 1 mm | 1 | 34428 | |
| 13 | Rundschnurring 20 x 2 mm | 1 | 27052 | |
| 14 | Rundschnurring 185 x 3 mm | 1 | 27296 | |
| 15 | Schmiernippel CM 6 (ohne Abb.) | 4 | 28681 | |
| 16 | Scheibe 50 x 20,5 x 1 mm | 1 | 34634 | |
| 17 | Sechskantschraube M8 x 25 mm | 6 | 27670 | Auf Anfrage |
| 20 | Sechskantschraube M12 x 50 mm | 4 | 30526 | Auf Anfrage |
| 21 | Sechskantmutter M12 | 4 | 29406 | Auf Anfrage |
| 22 | Spannstift 8 x 40 mm | 1 | 31437 | |
| 23 | Spannstift 8 x 50 mm | 1 | 17135 |
