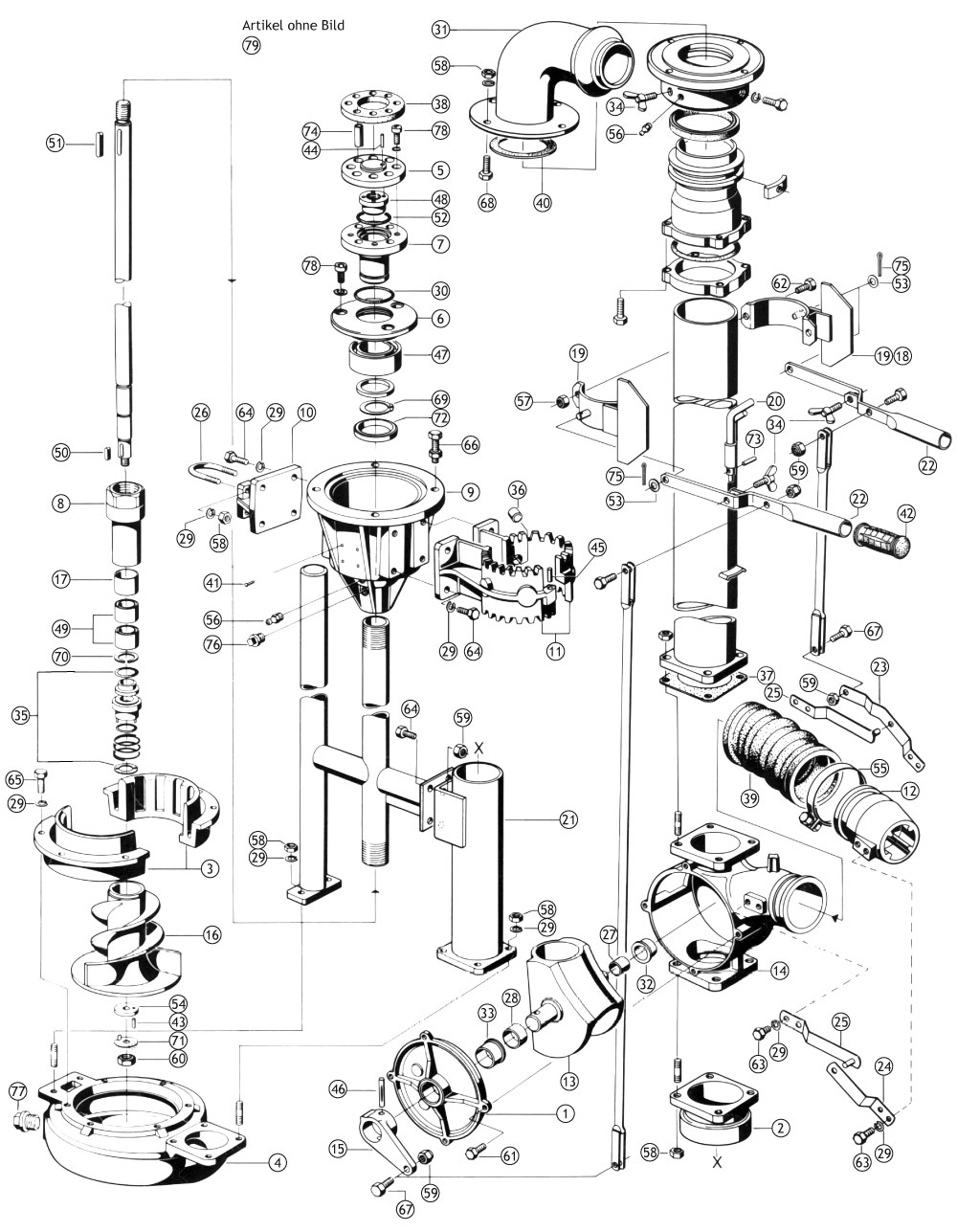

Explosionszeichnung

für Eisele Vertikalpumpe

Fehlende Ersatz- und Verschleißteile auf Anfrage.

Platzhalter
Eisele Vertikalpumpe
Position Artikel 1541/2041 2541/3041 Bestell-Nr.
1 Deckel 1 1 V68976
2 Drehflansch 1 1 V65057
3 Einströmdüse 1541 / 2041 2 2 V68573
3 Einströmdüse 2541 / 3041 2 2 V64872
4 Gehäuse 1541 / 2041 1 1 V73233
4 Gehäuse 2541 / 3041 1 1 V71869
5 Klemmscheibe 140 x 19 mm 1 1 V68270
6 Kugellagerdruckdeckel 1 1 V68972
7 Kupplungsnabe komplett D140 x D56 mm 1 1 V68971
8 Lagerbuchse 1 1 V61010
9 Lagerflansch 1 1 V65658
10 Rohrhalter 1 1 V61231
11 Rohrhalter 2 2 V64543
12 Rührdüse D108 1 1 V65408
13 Schieber 1 1 V68977
14 Schiebergehäuse 1 1 V68978
15 Schieberhebel 1 1 V68875
16 Schraubenflügel 15 PS für V1541 1 - V68545
16 Schraubenflügel 20 PS für V2041 1 - V68546
16 Schraubenflügel 25 PS für V2541 1 - V65073
16 Schraubenflügel 30 PS für V3041 1 - V64958
17 Abstandsbuchse 50 x 3 x 41 mm 1 1 V68771
18 Hebelanordnung einfach (Pos. 19 + 22 + 34 + 42 + 53 + 57 + 62 + 73) 1 1 V68645 Zur Anfrage
19 Hebelführung einfach, verzinkt 2 2 V68628 Zur Anfrage
20 Rasthebel 14 x 202 mm 1 1 V67179
21 Rührrohr 1541 / 2041, NIRO 1 1 V68701N
21 Rührrohr 2541 / 3041, NIRO 1 1 V68700N
22 Schalthebel, verzinkt 2 2 V68663 Zur Anfrage
23 Scharnierhebel 30 x 6 x 340 mm, NIRO 1 1 V68982N
24 Scharnierlasche 30 x 6 x 203 mm, NIRO 1 1 V65066N
25 Scharnierarm, NIRO 2 2 V65404N
26 Bügelschraube M12 x 214 mm 2 2 30392
27 Buchse D25 x D30 x 15 mm 1 1 29436
28 Buchse D40 x D45 x 25 mm 1 1 29435
29 Federring B12 Niro 36 38 34045
30 Filzschnur 4 x 4 mm T8W,F4 1 1 10623
31 Flanschbogen  1 1 D70632 Zur Anfrage
32 Flanschbuchse NFB 3036-15 1 1 31554
33 Flanschbuchse NFB 4553-23 1 1 31555
34 Flügelschraube M10 x 25 mm 2 2 V72762
35 Gleitringdichtung KPL GW35 1 1 V76780
36 Gleitzapfen Polyamid-B 4 4 30670
37 Gummidichtung 150 x 150 x 3 mm 1 1 31096
38 Gummikupplungsscheibe 140 x 18 x 62 mm 1 1 29063
39 Gummimuffe D108 1 1 30428
40 Gummiflachdichtung für 4-Loch-Flansch 1 1 30984
41 Kerbnagel 2,3 x 5 mm 4 4 25647
42 Handgriff 2 2 31832 Zur Anfrage
43 Kerbstift 5 x 12 mm 1 1 23591
44 Kerbstift 5 x 20 mm 1 1 11506
45 Kerbstift 8 x 32 mm 1 1 23018
46 Kerbstift 10 x 60 mm 1 1 28893
47 Schrägkugellager 3213-2RS 1 1 28873
48 Mutter M30 x 1,5 mm 1 1 V68285
49 Nadellager NKI 35/30 XL-25 2 2 28874
50 Passfeder A8 x 7 x 50 mm 1 1 13039
51 Passfeder A10 x 8 x 50 mm 1 1 23698
52 Rundschnurring 62 x 4 mm 1 1 28669
53 Scheibe 2 2 355592 Zur Anfrage
54 Scheibe 16,5 x 50 x 4 mm 1 1 31155
55 Schlauchschelle 100 x 120 mm W4/W5 mit 9 mm 2 2 33662
56 Schmiernippel AM 6 1 1 28895
57 Sechskantmutter 2 2 34098 Zur Anfrage
58 Sechskantmutter M12 NIRO 22 22 33605
59 Sechskantmutter M12 12 12 34110
60 Sechskantmutter M16 x 1,5 mm 1 1 27019
61 Sechskantschraube 4 4 35519 Zur Anfrage
62 Sechskantschraube 2 2 35458 Zur Anfrage
63 Sechskantschraube M12 x 25 mm NIRO 8 8 35499
64 Sechskantschraube M12 x 30 mm 16 16 34532
65 Sechskantschraube M12 x 35 mm 8 10 35507
66 Sechskantschraube M12 x 45 mm VA 14 14 31633
67 Sechskantschraube M12 x 45 mm VA 2 2 31633
68 Sechskantschraube M12 x 55 mm 4 4 34235
69 Sicherungsring 65 x 2,5 mm 1 1 29058
70 Sprengring SW35 1 1 29057
71 Scheibe 17 / Sicherungsblech 1 1 29841
72 Wellendichtring 65 x 90 x 10 mm 1 1 28898
73 Spannstift 4 x 20 mm 1 1 30871
74 Spannstift 16 x 50 mm 4 4 31550
75 Splint 4 x 36 mm 2 2 34517
76 Stopfen R1/2 Nr. 290 1 1 12720
77 Verschlussschraube R1 x 16 mm 1 1 29048
78 Zylinderschraube M10 x 20 mm 7 7 28899
79 Gewindestift M10 x 12 mm 2 2 33988
