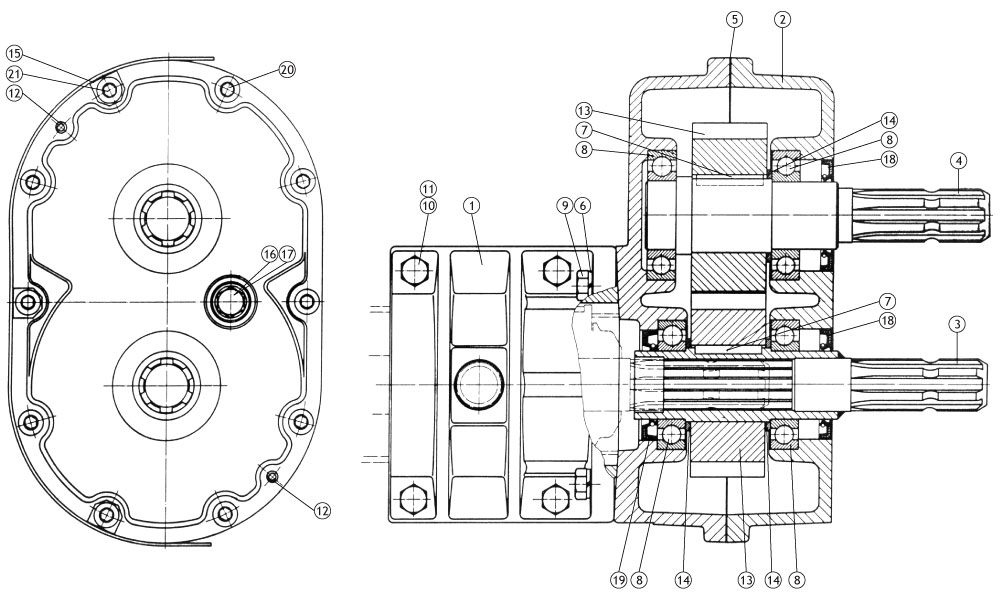

Explosionszeichnung
für Eisele Wendegetriebe
Fehlende Ersatz- und Verschleißteile auf Anfrage.
| Position | Artikel | Stück | Bestell-Nr. | |
| 1 | Flanschschelle | 2 | V74030 | |
| 2 | Getriebedeckel | 1 | V72934 | Auf Anfrage |
| 3 | Zapfwelle | 1 | V72928 | |
| 4 | Zapfwelle D50 x 239 mm | 1 | V72932 | |
| 5 | Dichtung 316 x 206 x 0,5 mm | 1 | 32352 | |
| 6 | Federring | 6 | 28826 | Auf Anfrage |
| 7 | Passfeder A14 x 6 x 45 mm | 2 | 33193 | |
| 8 | Rillenkugellager 6209 | 4 | 33198 | |
| 9 | Sechskantschraube | 6 | 30186 | Auf Anfrage |
| 10 | Sechskantschraube | 4 | 31111 | Auf Anfrage |
| 11 | Sechskantmutter | 4 | 27249 | Auf Anfrage |
| 12 | Spannstift | 2 | 27448 | Auf Anfrage |
| 13 | Stirnrad Z-22 M-5 | 2 | V72937 | |
| 14 | Stützscheibe 48 x 60 x 3 mm | 3 | 33202 | |
| 15 | Unfallschutz | 1 | V70813 | |
| 16 | Usitring 17,4 x 24 x 1,5 mm | 1 | 29027 | |
| 17 | Verschlussschraube R3/8" | 1 | 29025 | |
| 18 | Wellendichtring AS 45 x 72 x 8 mm | 2 | 33511 | |
| 19 | Wellendichtring BA 45 x 72 x 10 mm | 1 | 33427 | |
| 20 | Zylinderschraube M10 x 30 mm | 7 | 32302 | |
| 21 | Zylinderschraube M10 x 35 mm | 3 | 32303 |
