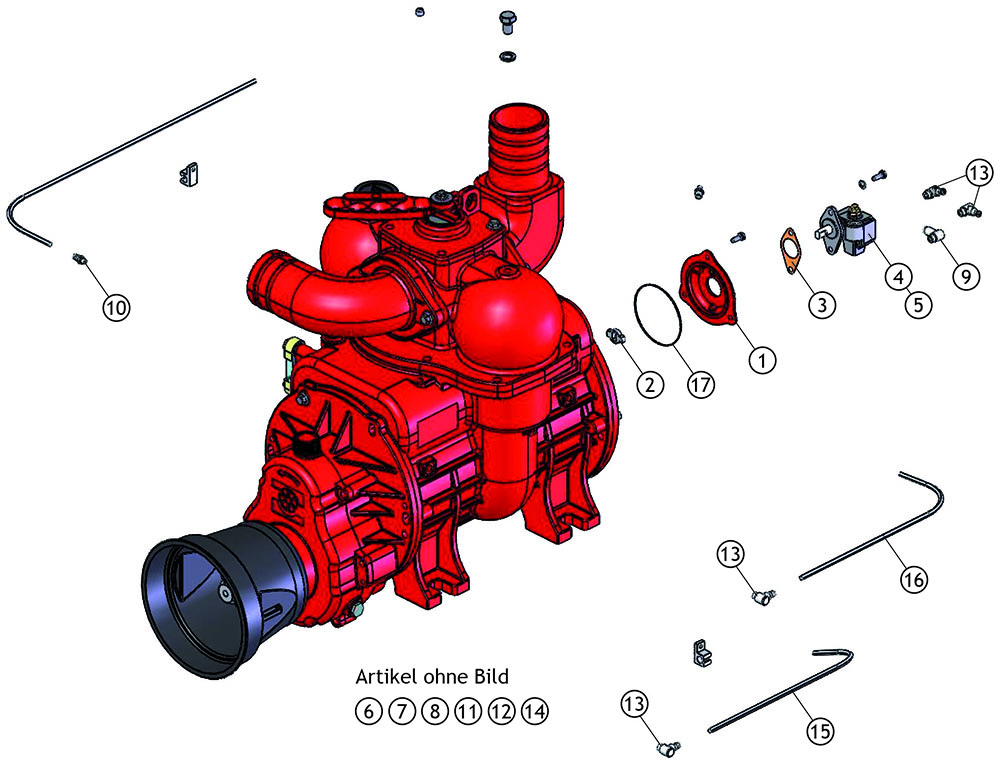

Explosionszeichnung
für Battioni & Pagani LA Automatikschmierung bei MEC 4000 / 5000 / 6500 / 8000
Fehlende Ersatz- und Verschleißteile auf Anfrage.
| Position | Artikel | Ident-Nr. | Bestell-Nr. | |
| 1 | Deckel |
4010601022 | 2LA1 | |
| 2 | Mitnehmer für Ölpumpe |
4010006002 | 2LB2 | |
| 3 | Dichtung |
4030108011 | 2LB4 | |
| 4 | Ölpumpe 2 Wege (MEC 4000 und 5000) |
5080200009 | 2LA5 | |
| 5 | Ölpumpe 3 Wege rechts |
5080200011 | 2LB5 | |
| 6 | Anschluss 8 x 1 x 20 mm, kurz 4 mm (ohne Abb.) |
5040303005 | 2LA8 | |
| 7 | PE-Schlauch 6 x 1 mm (ohne Abb.) |
5080105002 | 2LA11 | |
| 8 | PE-Schlauch 4 x 6 x 260 mm (ohne Abb.) |
5080105002 | 2LB11 | |
| 9 | Anschluss 90°, 1/8" x 6 mm |
5040303007 | 2LA12 | |
| 10 | Anschluss 1/8" x 6 mm gerade (MEC 5000) |
5040303011 | 2LB12 | |
| 11 | PA-Schlauch 4 x 1 mm (ohne Abb.) |
5080105001 | 2LA13 | |
| 12 | Anschluss 8 x 1 x 30 mm (ohne Abb.) |
5040303006 | 2LB13 | |
| 13 | Anschluss 90°, 1/8" x 4 mm |
5040303008 | 2LA15 | |
| 14 | Anschluss M5 x 4 mm gerade (ohne Abb.) |
5040303009 | 2LA16 | |
| 15 | PE-Schlauch 2 x 4 x 690 mm | 5080105001 | 2LB16 | Auf Anfrage |
| 16 | PE-Schlauch 2 x 4 x 290 mm | 5080105001 | 2LB17 | Auf Anfrage |
| 17 | Dichtung |
4030108005 | 2LA22 |
