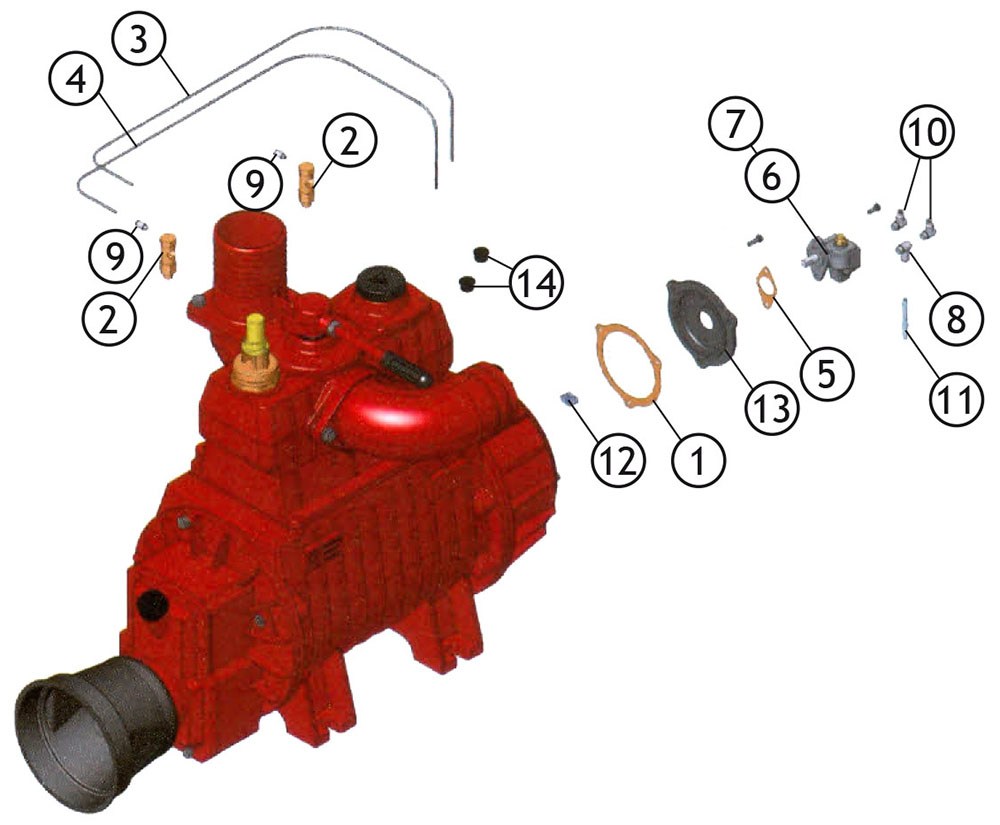

Explosionszeichnung
für Battioni & Pagani LA Automatikschmierung bei Battioni & Pagani SE 10000 / 12000
Fehlende Ersatz- und Verschleißteile auf Anfrage.
| Position | Artikel | Ident-Nr. | Bestell-Nr. | |
| 1 | Dichtung hintere Abdeckung |
4030108018 | 2AS13 | |
| 2 | Tropföler |
5040200005 | 2AS73 | |
| 3 | PE-Schlauch 2 x 4 x 540 mm | 5080105001 | 2AS74 | Auf Anfrage |
| 4 | PE-Schlauch 2 x 4 x 340 mm | 5080105001 | 2AS75 | Auf Anfrage |
| 5 | Dichtung |
4030108011 | 2LB4 | |
| 6 | Ölpumpe, 3 Wege A.L.-Dx |
5080200011 | 2AS79-D | |
| 7 | Ölpumpe, 3 Wege A.L.-Sx |
5080200012 | 2AS79-S | |
| 8 | Anschluss 90°, 1/8" x 6 mm |
5040303007 | 2LA12 | |
| 9 | Anschluss M5 x 4 mm gerade |
5040303009 | 2LA16 | |
| 10 | Anschluss 8 x 1 x 20, kurz 4 mm |
5040303005 | 2LA8 | |
| 11 | PE-Schlauch 4 x 6 x 80 mm | 5080105002 | 2AS85 | Auf Anfrage |
| 12 | Mitnehmer für Ölpumpe |
4010006002 | 2LB2 | |
| 13 | Deckel | 4010601024 | 2AS87 | Auf Anfrage |
| 14 | Stopfen / Schlauchdurchgang Ø 4 mm | 4060310002 | 2AS131 |
