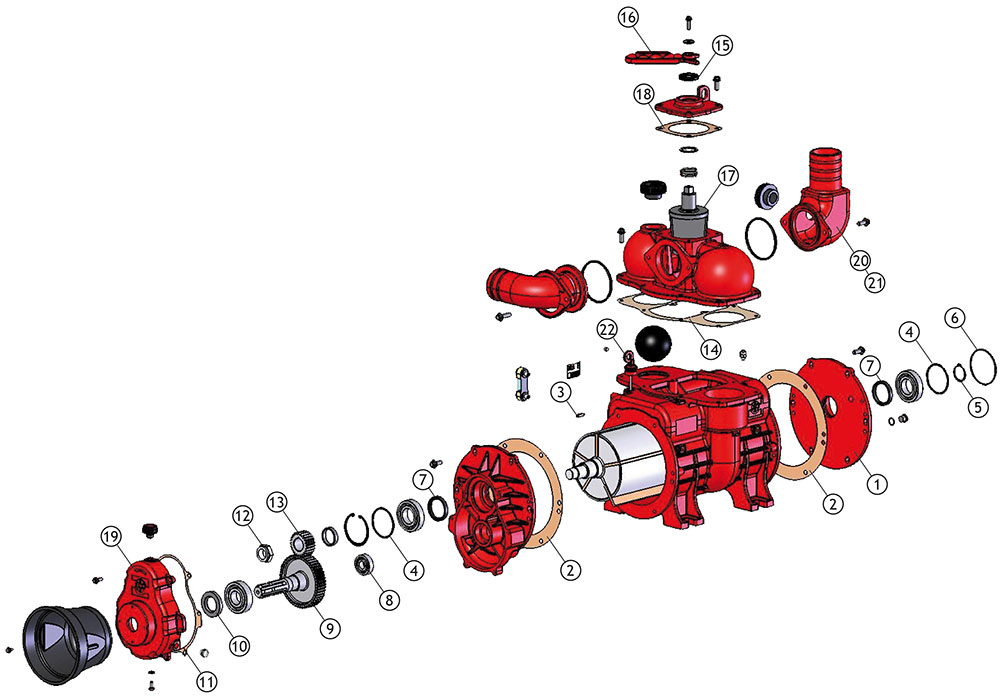

Explosionszeichnung
für Battioni & Pagani MEC II 9000 / 11000 / 13500 LF
Fehlende Ersatz- und Verschleißteile auf Anfrage.
| Position | Artikel | Bestell-Nr. | |
| 1 | Gehäuseflansch | 2CM3 | Auf Anfrage |
| 2 | Flanschdichtung |
2CM4 | |
| 3 | Keil 6 x 6 x 25 mm | 2CM6 | Auf Anfrage |
| 4 | Dichtring / Passscheibe LMKAS 80F |
2CM8 | |
| 5 | Seeger-Ring Ø 40E |
2CM9 | |
| 6 | Dichtring OR 86824 | 2CM13 | Auf Anfrage |
| 7 | Wellendichtring 48 x 62 x 10 DCV |
2CM18 | |
| 8 | Rillenkugellager 6304 |
2CM25 | |
| 9 | Zahnrad mit Welle Z53 - M2.5 |
2CM26 | |
| 10 | Wellendichtring 35 x 62 x 10 mm |
2CM27 | |
| 11 | Dichtung Getriebedeckel |
2CM28 | |
| 12 | Sicherungsmutter M27 x 2 x 16 mm |
2CM32 | |
| 13 | Zahnrad Z23 - M2.5 |
2CM33 | |
| 14 | Kollektordichtung |
2CM39 | |
| 15 | Wellendichtring 35 x 50 x 7 mm |
2CM40 | |
| 16 | Handgriff |
2CM60 | |
| 17 | Inverterkegel |
2CM62 | |
| 18 | Dichtung für Kollektordeckel |
2CM68 | |
| 19 | Getriebedeckel CE |
2CM94 | |
| 20 | Schlauchanschluss 80 mm |
2CME61 | |
| 21 | Schlauchanschluss 100 mm |
2CMEC61 | |
| 22 | Ölmessstab 55 mm |
2CM106 |
