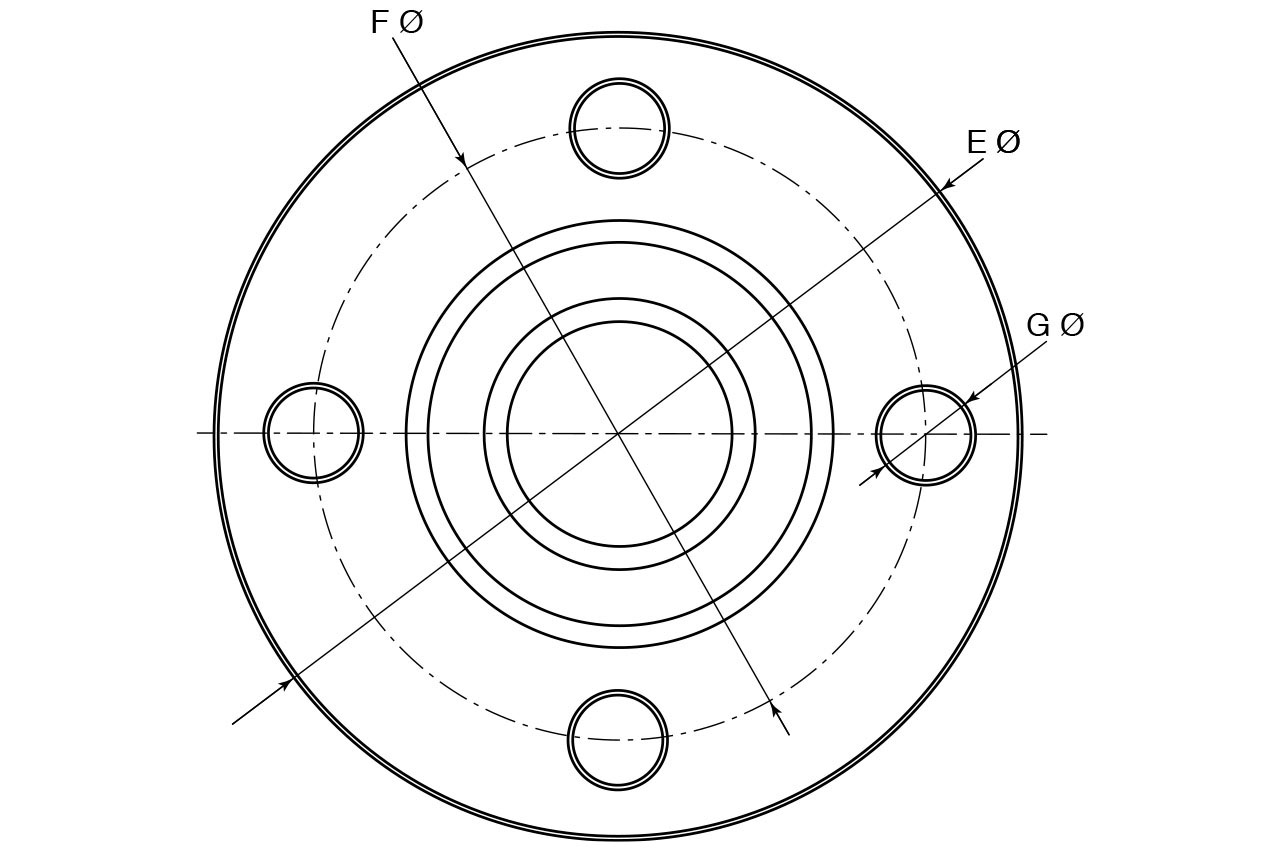

Maße für Flanscharmaturen
Flansch
| Nennweite | Größe | E Ø | F Ø | Gxn Ø |
| DN 25 | 1" | 115 | 85 | 14x4 |
| DN 32 | 1 1/4" | 140 | 100 | 18x4 |
| DN 40 | 1 1/2" | 150 | 110 | 18x4 |
| DN 50 | 2" | 165 | 125 | 18x4 |
| DN 65 | 2 1/2" | 185 | 145 | 18x8 |
| DN 80 | 3" | 200 | 160 | 18x8 |
| DN 100 | 4" | 220 | 180 | 18x8 |
| DN 125 | 5" | 250 | 210 | 18x8 |
| DN 150 | 6" | 285 | 240 | 22x8 |
| DN 200 | 8" | 340 | 295 | 22x12 |
